Category: Bondioli and Pavesi

Part Description: Regular Shafts A-BP512100101-A

Item:A-BP512100101-A

Bondioli and Pavesi Regular Shafts A-BP512100101-A
(Miscellaneous) Alternative PTO QD: (Undefined)
Bondioli & Pavesi 100 Series: Size 5

mega-cross: (1 to 6 of 6)
	Replaces:	BP105-1010-A	EDCOR
		D756548	DRIVELINE
		PM14046548	JOHN DEERE
		14046548	DRIVE-LINE
	Crossed From:	BCS50900	TISCO
		W14046548DS	CASE/IH

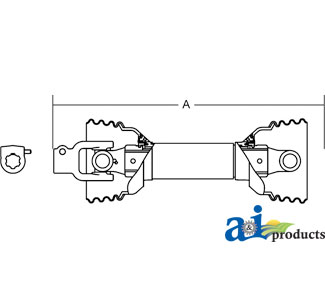

Complete Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 48 (1210 mm), Maximum C-to-C Length: 74 (1890 mm), Total Collapsed Length: 56 (1430 mm). Tractor end: 1-3/8 6 Spline. Implement end: 1-3/8 6 Spline. Series: 100. Category 4 (47 hp). It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out. Fits Bondioli & Pavesi 100 Series: Size 5.
-  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size	5
Total Collapsed Length	1430MM/ 56"
Tractor	1 3/8" - 6
Implement	1 3/8" - 6
C to C Min	1210 MM/ 48"
C to C Max	1890 MM/ 74"
Series	100
Category	4 (47HP)

Weight: 41.90 lb.
PRICE: $222.86
Core Charge: $0.00
Qty in Pkg.: 1
